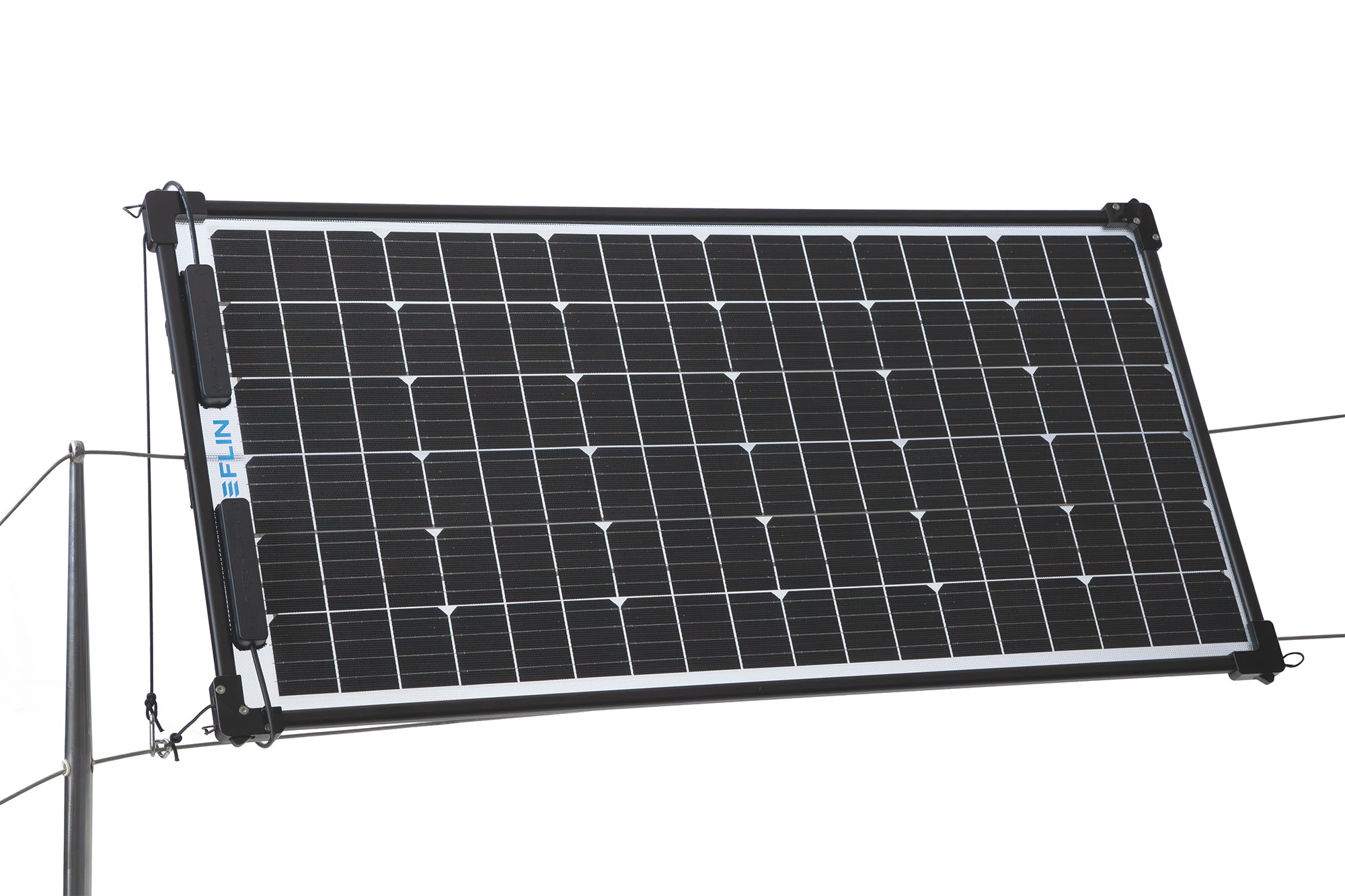

FLINrailᐩ MultiVolt

Datasheet: FLINrail Multivolt

The FLINrail+ MultiVolt 100W+ is the next generation of our proven
Railing solar modules and the perfect solar solution for retrofitting. The module can be used universally for charging 12V, 24V and 48V batteries via MPPT controllers.

Size : 1122 mm x 560 mm x 20 mm
Maximum wind speed: 40 knots

Mounting :

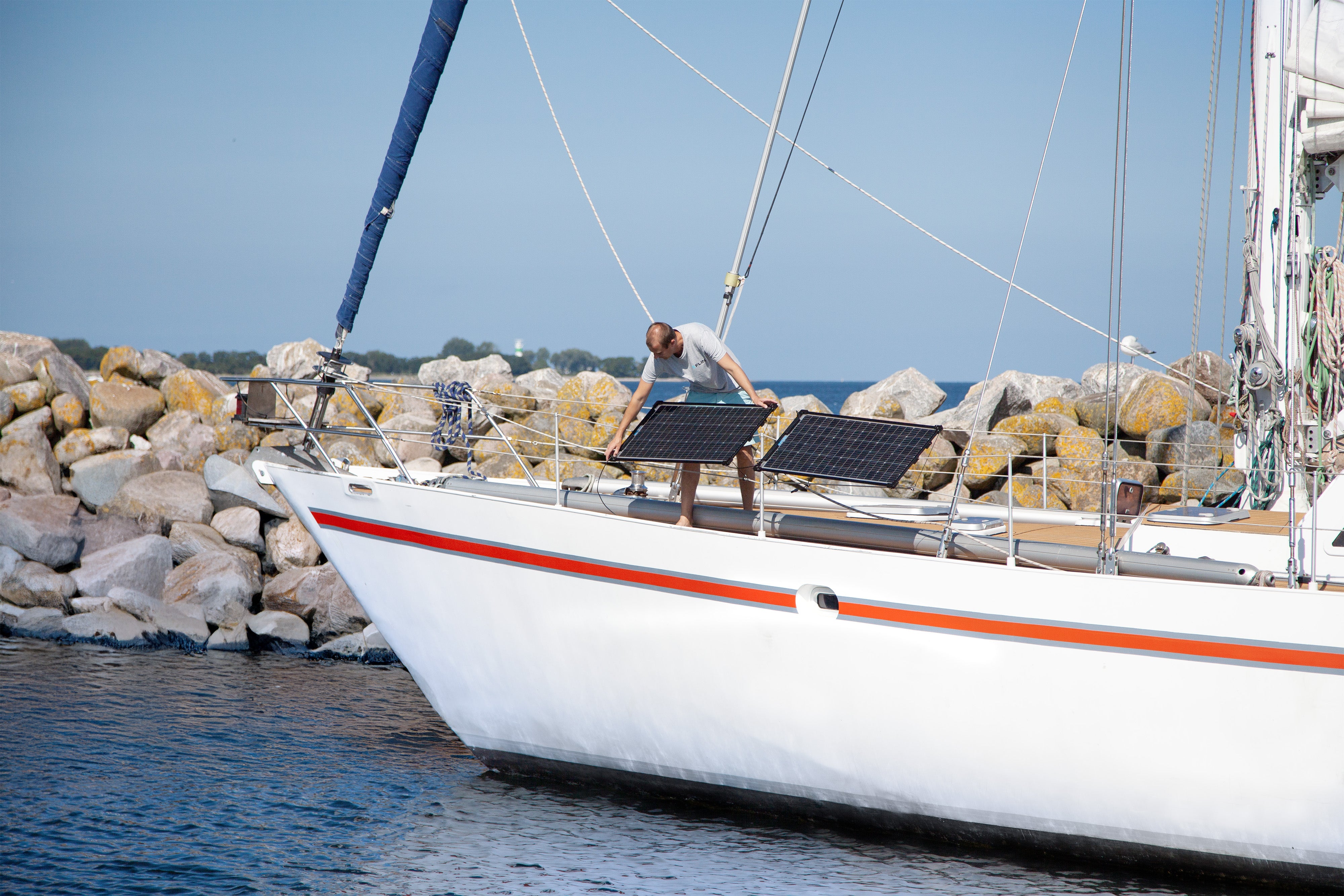

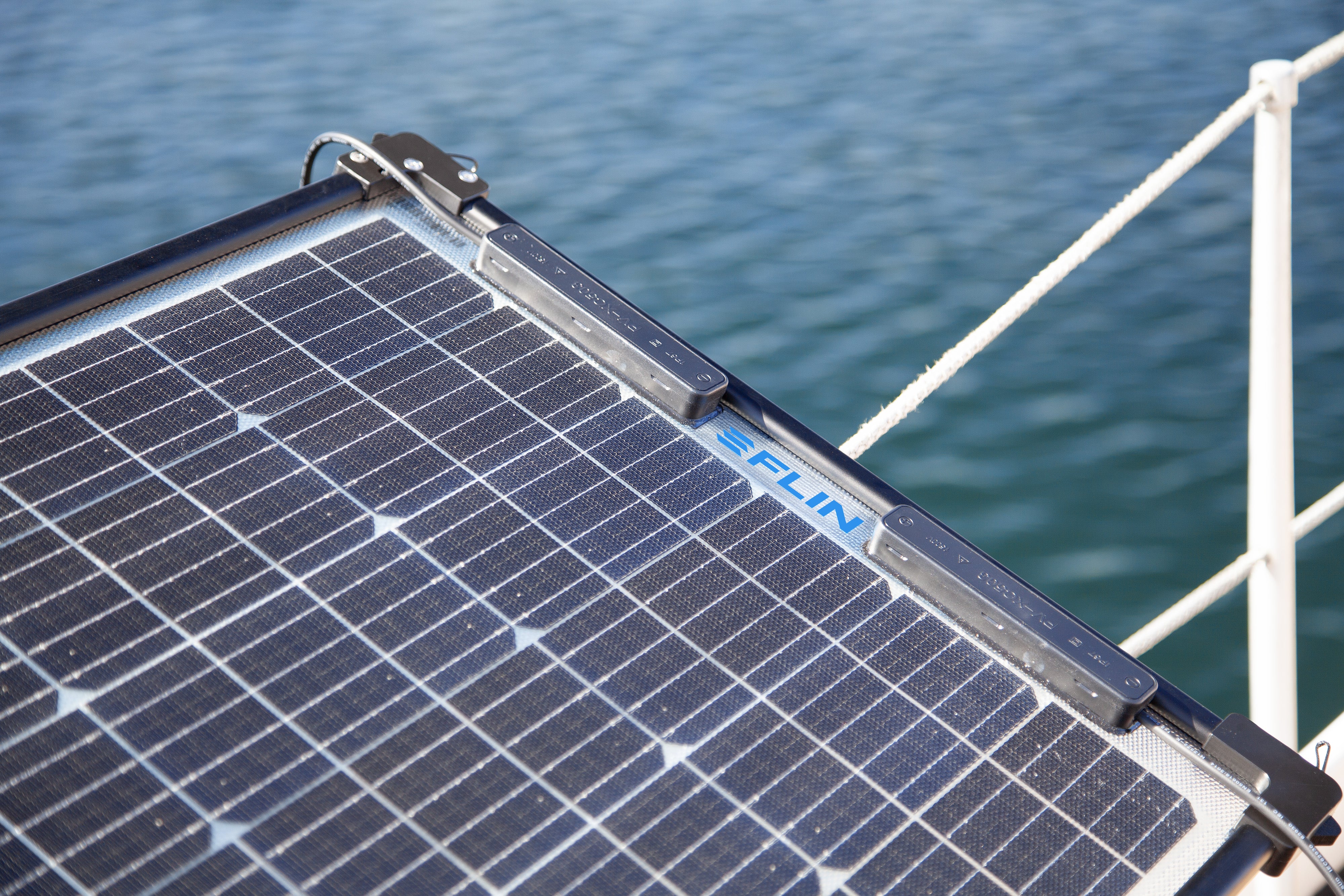

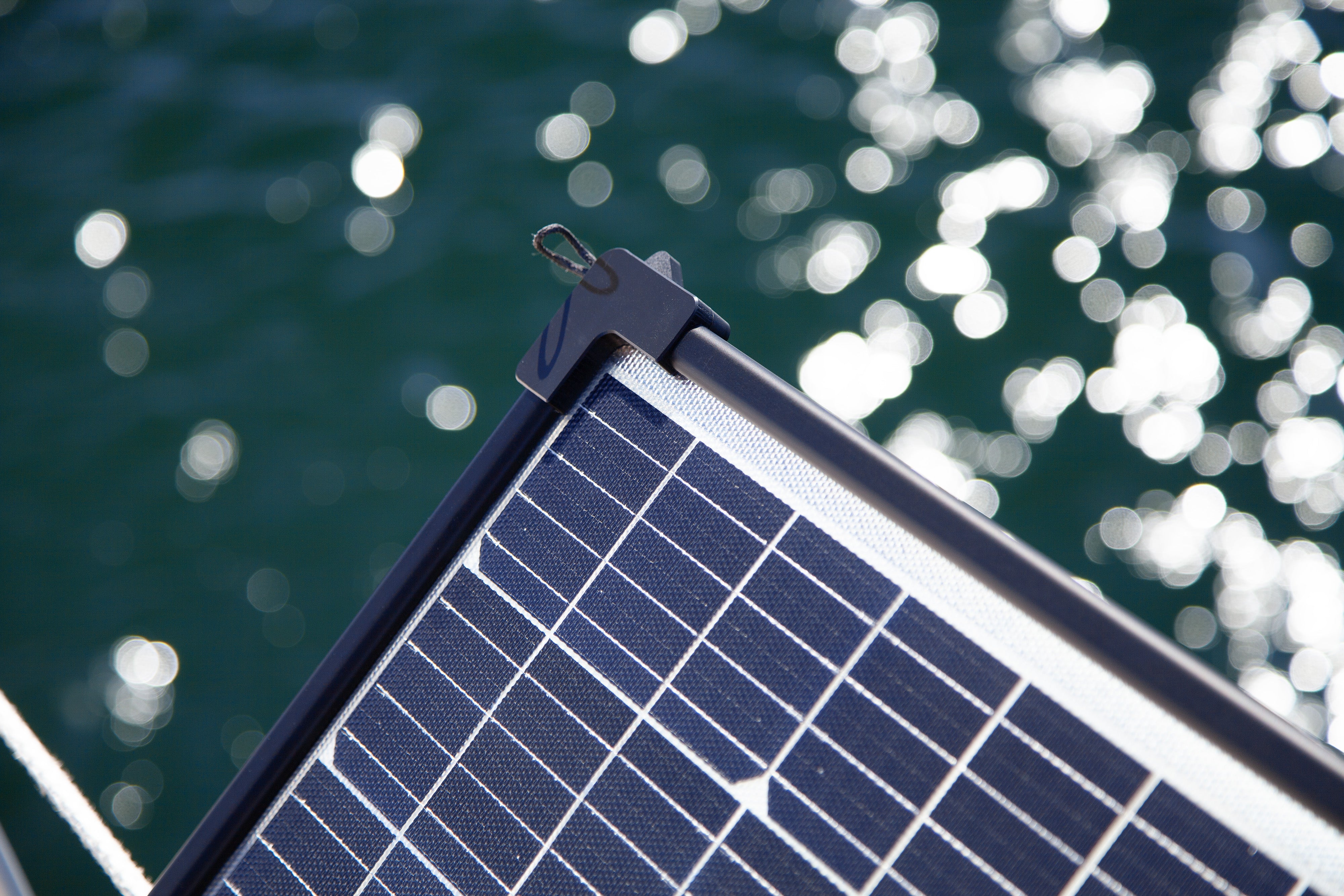

The solar panel is simply hooked onto the railing and can be used both at anchor and while sailing. The solar panel can They can be attached to pipe railings with a diameter of 20 mm or 25 mm, or to the railing wire . We can also manufacture custom-made fixings for other railing diameters upon request.

Innovative technology :
With the new MultiVolt technology, you benefit from maximum flexibility and energy efficiency. The six integrated bypass diodes ensure optimal shading resistance and reliably prevent hotspots.

FLINrail + uses bifacial modules , which generate energy from both sides and are therefore up to 20% more efficient than conventional modules. The stepless adjustment to the sun's orientation further ensures maximum energy yield.

+ : All products with bifacial solar modules are marked with a plus sign.

You can find everything about the assembly in our YouTube video .

"In addition to our solar modules, we also provide all the components for a Victron Energy charging infrastructure with personal consultation and installation assistance – including video calls and comprehensive after-sales service."
