FLINflex⁺ 100Wᐩ

FLINflex⁺

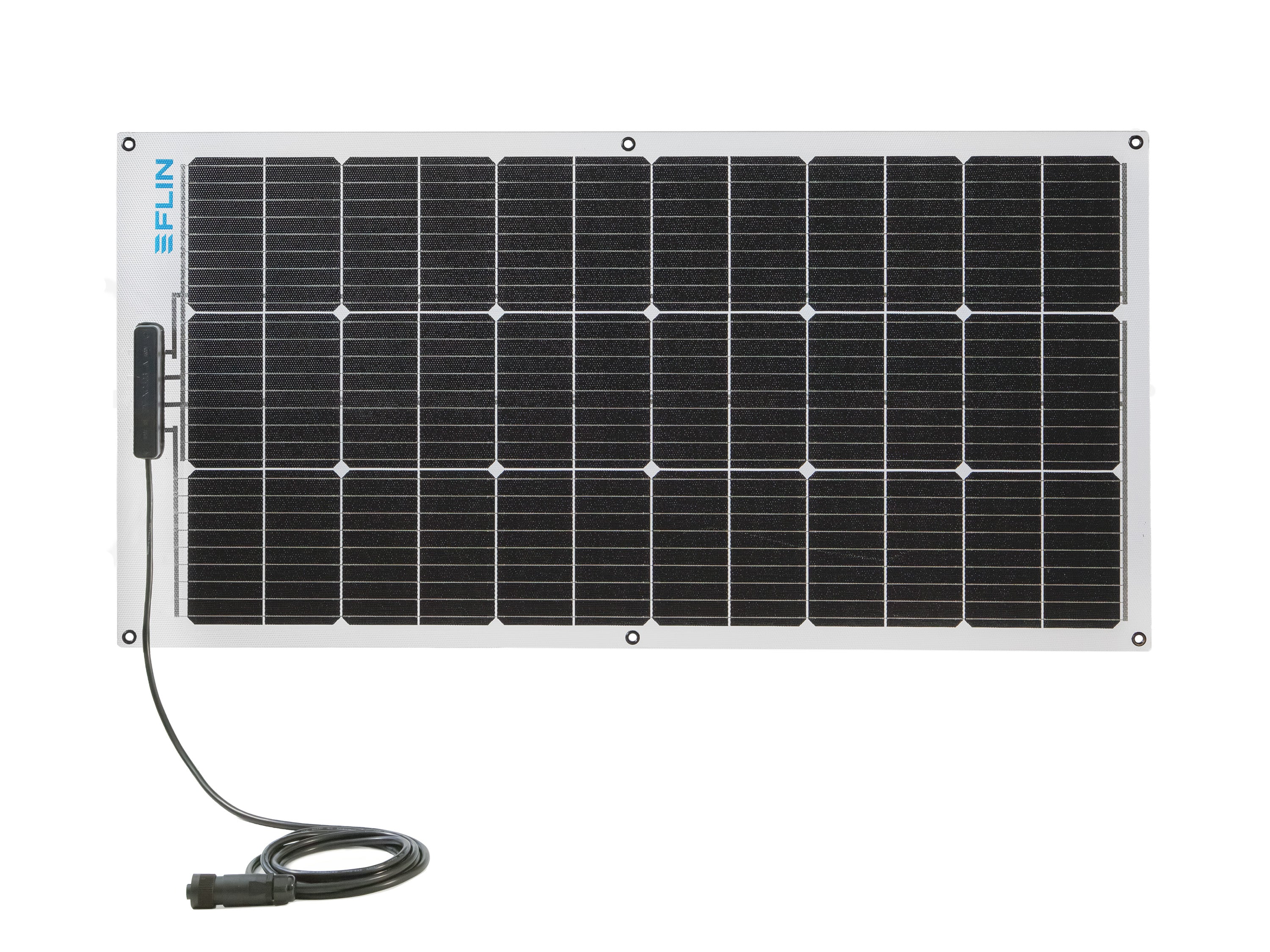

Our FLINflex⁺ is a lightweight, flexible solar module for versatile installation on board. Depending on the mounting system, it can be flexibly attached to sprayhoods, biminis, canvas covers, stanchion wires, or other suitable areas.

FLINflex⁺ Multivolt

Our FLINflex⁺ Multivolt allows charging of 12V, 24V, and 48V battery systems via an MPPT controller.

FLINflex⁺ Philippi

The FLINrailᐩ Philippi is equipped with a 2 m long single cable and a Philippi connector. This makes it easy to connect the solar module directly to a suitable Philippi deck fitting. Three integrated bypass diodes reduce power losses in partial shading.

Mounting:

Eyelet version

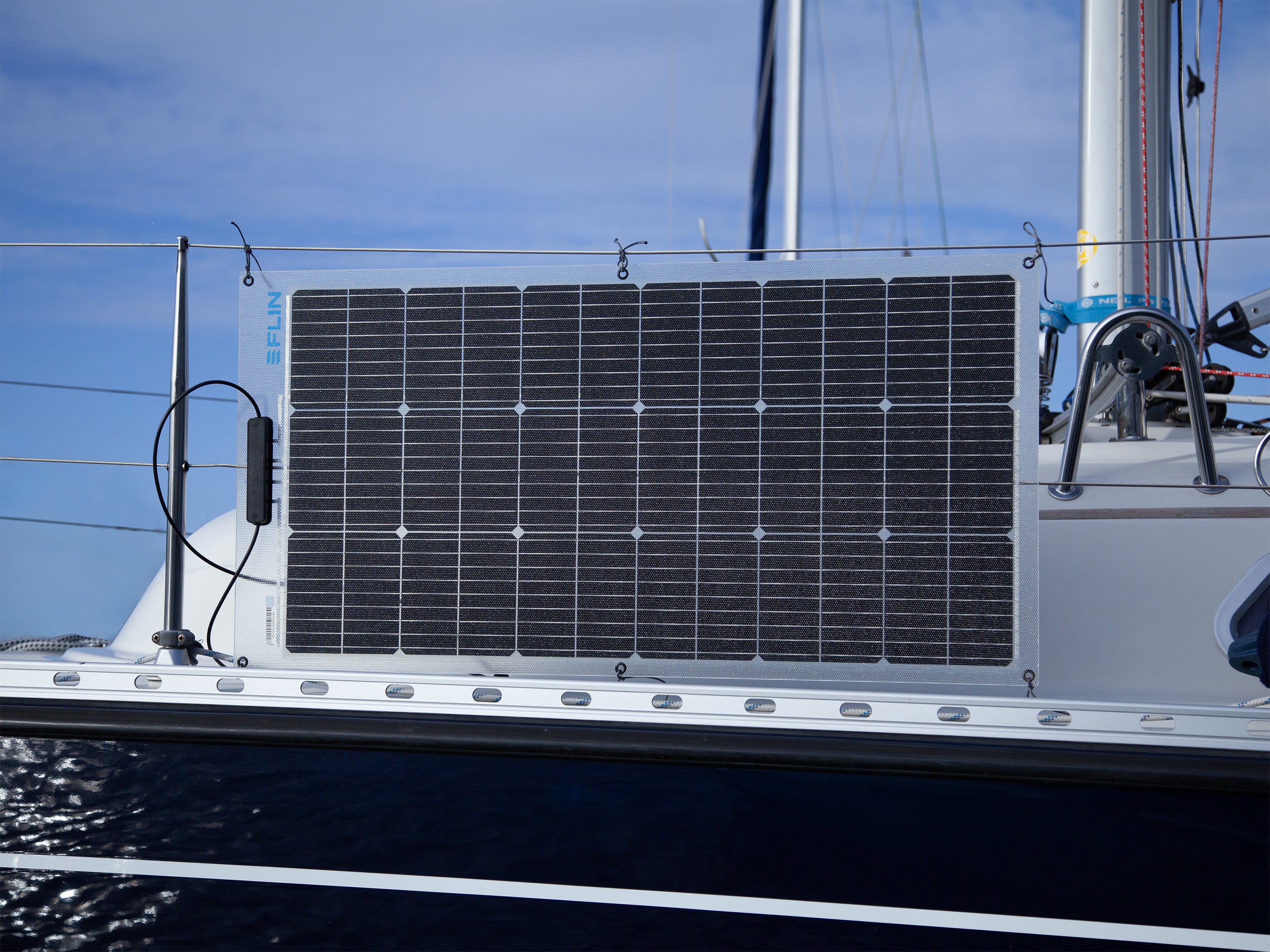

With integrated mounting eyelets, the module can be flexibly mounted with ropes or cable ties and quickly repositioned elsewhere on the boat if needed.

Snap version
The snap version features six original LOXX snap fasteners and allows for quick and secure attachment to canvas covers or other textile surfaces.

Tex version
The Tex version features a glued and sewn 16 mm wide Velcro strip on the long sides (hook-and-loop tape on top, loop tape on the bottom) and is ideal for mounting on sprayhoods, biminis, or other textile surfaces.

Innovative technology:

Thanks to the innovative bifacial technology, which uses both the front and back for energy generation, the efficiency of the solar module is maximized. The continuous adjustability towards the sun additionally ensures maximum energy yield.
The module was developed and tested in Europe and impresses with its flat, lightweight design – ideal for use on sailing and motor yachts.

Technical details:

FLINflexᐩ
Dimensions: 1070mm x 540mm x 2mm
Weight: 2.1 kg
Nominal voltage (⁠Vmpp): 24 V

FLINflexᐩ Philippi
Dimensions: 1070mm x 540mm x 2mm
Weight: 2.3 kg
Nominal voltage (⁠Vmpp): 24 V

FLINflexᐩ Multivolt
Dimensions: 1095 mm × 540 mm × 2 mm
Weight: 2.1 kg
Nominal voltage (⁠Vmpp): 60.5 V

Downloads:

Data sheet: FLINflexᐩ
Data sheet: FLINflexᐩ MultiVolt

Need more power?

Our solar modules can easily be connected together. For example, a second or third module can be retrofitted – turning 100 W into 200 W, 300 W, or more. We are happy to advise you personally on professional installation and accessory selection.

Delivery time: approx. 1-2 weeks (EU mainland)
